Ladle Heaters
Industrial Ladle Heating Systems for Foundry Applications
ATD Engineering & Machine manufactures industrial ladle heaters and ladle heating systems custom-built to your ladle or pouring box design. Our Engineering team starts with your existing ladle or pouring box design and develops a new lid with various insulation and refractory linings to accompany the combustion system. Our modulated, unmodulated, and simple ladle heater models, also used as ladle preheaters, help prepare refractory-lined vessels for service by reducing thermal shock, minimizing refractory cracking, and limiting molten metal temperature loss. Designed for foundry applications, ATD ladle heating systems support refractory bake-out, ladle preheating, and temperature maintenance across a range of production environments.
Types of Ladle Heaters
Modulated Ladle Heaters
Simple Ladle Heaters
Unmodulated Ladle Heaters
Ramp/Soak Ladle Heaters
ATD Ladle Heaters features
Modulated or Unmodulated gas and/or air
control
Custom nozzle types and mounting angles (30°, 45°, 90° and more) to fit your ladle or pouring box design
Complete Flame safety including UV Scanner or Flame Rod, and high/low pressure switches.
Automatic Spark Ignition
Wide range of BTU’s
Ramp / Soak recipe control for refractory bake out and longer refractory LIFE!!

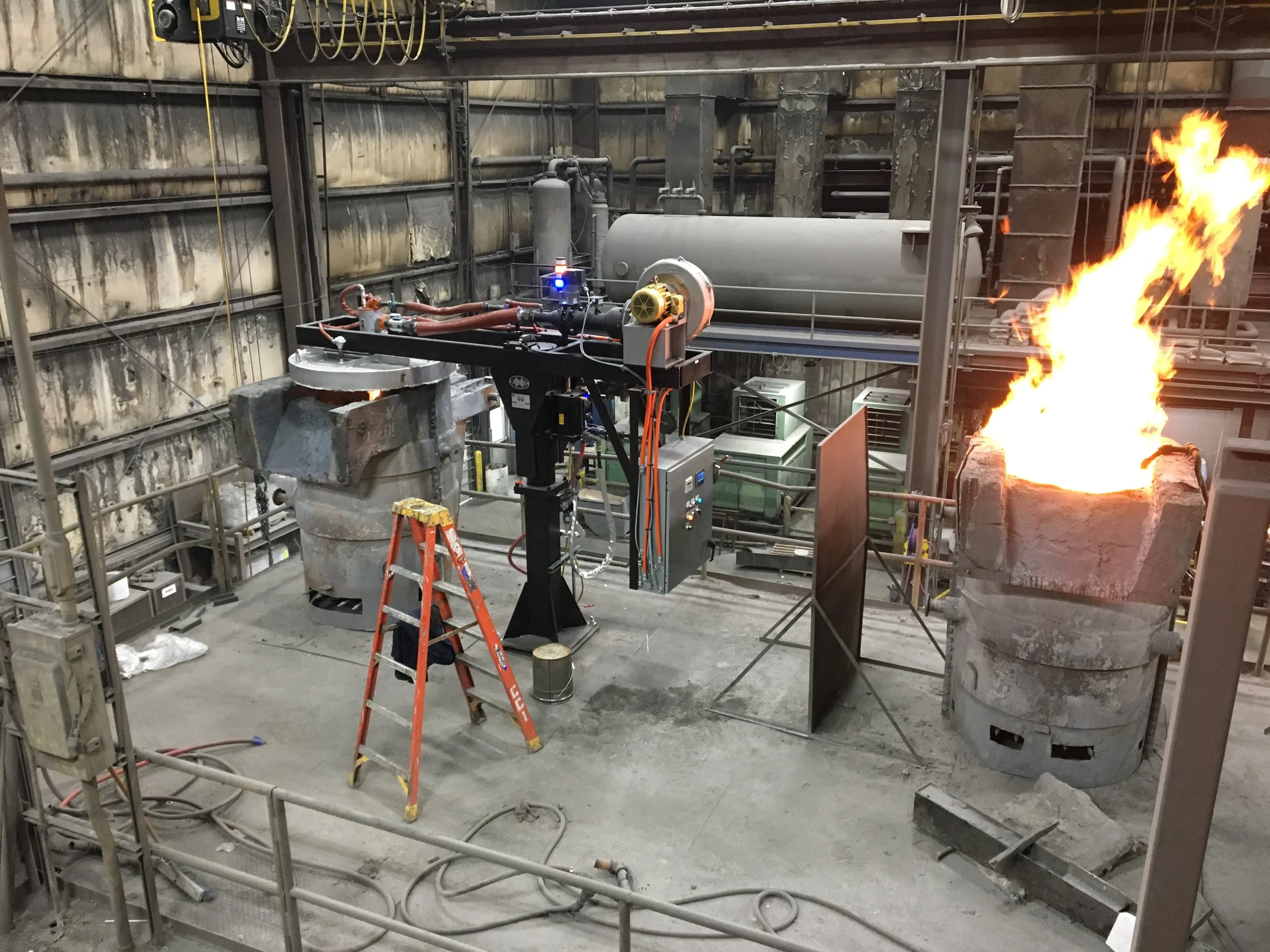

Modulated Ladle Heaters
ATD’s Modulated ladle heaters have fully automatic temperature controls and turn down. Once the heater reaches the temperature set point, it will throttle down and hold the temp. This is the most efficient ladle heater ATD produces, and we have worked with gas utility companies to determine cost savings for our customers. Some of these studies have shown that when using a Modulated ladle heater, you can reduce your gas and compressed air consumption by over HALF in comparison to a simple drop pipe.
Many customers use the ATD modulated ladle heater for baking out new refractory, as it also has full ramp/soak features that can be uniquely programmed for each ladle or pouring box
EQUIPMENT UNIT
Modulated Ladle Heaters
Unmodulated Ladle Heaters
Our unmodulated ladle heaters all have the same flame safety as our modulated versions, but the temperature is not controllable. We have implemented timers into these systems so that customers can avoid overheating a ladle or pour box.
EQUIPMENT UNIT
Unmodulated Ladle Heaters
Simple Ladle heaters
This type of ladle heater has minimal controls and safety features. The simple ladle heaters are compact and can be adapted to fit anywhere in your foundry.
EQUIPMENT UNIT
Simple Ladle heaters
Which Ladle Heating System Is Right for Your Foundry
Continuous Production
Modulated ladle heaters provide automatic temperature control and variable burner output for continuous production and controlled refractory bake-out.
Refractory Bake-Out:
Ramp/soak control provides programmable heating profiles for gradual temperature increases during new or relined refractory bake-out.
Simple, Timer-Based Operation
Unmodulated ladle heaters provide flame safety and timer-based operation for applications where automatic temperature modulation is not required.
Limited Space
Simple ladle heaters offer a compact, minimal-control solution for installations with space or layout constraints.
Energy Efficiency
Modulated systems adjust burner output as the set temperature is reached, helping reduce gas and compressed-air consumption compared with simple drop-pipe systems.
Applications of Ladle Heating Systems
ATD ladle heaters and ladle heating equipment are used across a range of foundry applications, including.
Ladle Preheating:
Initial heating of ladle refractory lining before molten metal contact.
Pouring Boxes:
Heated refractory vessels or equipment used for molten metal transfer and pouring applications.
Refractory Bake-Out:
Controlled heating of new or relined refractory to remove moisture and condition the lining.
Ladle Temperature Maintenance:
Controlled heating between heats or during extended production cycles.
Transfer Ladles:
Molten metal transfer between melting, holding, treatment, and pouring operations.
Ferrous Foundries:
Iron and steel casting operations requiring ladle preheating or refractory conditioning.
Pouring Ladles:
Molten metal delivery from ladles into molds during casting operations.
Non-Ferrous Foundries:
Aluminum, bronze, and non-ferrous casting requiring ladle or pouring equipment heating.
video demonstration
ATD Simple Ladle Heater with flame detection
ENGINEERING CONSULTATION & TECHNICAL SIZING
As an experienced ladle heater manufacturer, ATD Engineering & Machine supports your ladle heating equipment beyond the initial installation, with service and technical support focused on reliable equipment performance throughout its operating life. Our team can work with you to address equipment requirements, maintenance needs, and long-term support for your ladle heating system. Talk with ATD Engineering & Machine about your ladle or pouring box design, heating requirements, and production needs.
Need help selecting the right ladle heater?
FREQUENTLY ASKED QUESTIONS
-
Modulated ladle heaters provide automatic temperature control and reduce burner output as the set point is reached. ATD customer studies have shown gas and compressed-air consumption reductions of more than half compared with a simple drop pipe. Unmodulated heaters use the same flame safety systems but rely on timers rather than automatic temperature control.
-
Modulated ladle heaters provide automatic temperature control and reduce burner output as the set point is reached. ATD customer studies have shown gas and compressed-air consumption reductions of more than half compared with a simple drop pipe. Unmodulated heaters use the same flame safety systems but rely on timers rather than automatic temperature control.
-
ATD ladle heaters are available in a wide range of BTU configurations, depending on ladle size, pouring box design, refractory requirements, and application.
Ready to start your project?
We’re here to be your number one! We want you to get great design, outstanding customer service, and excellent service for your machines. Let’s talk about your project today.
